VB246

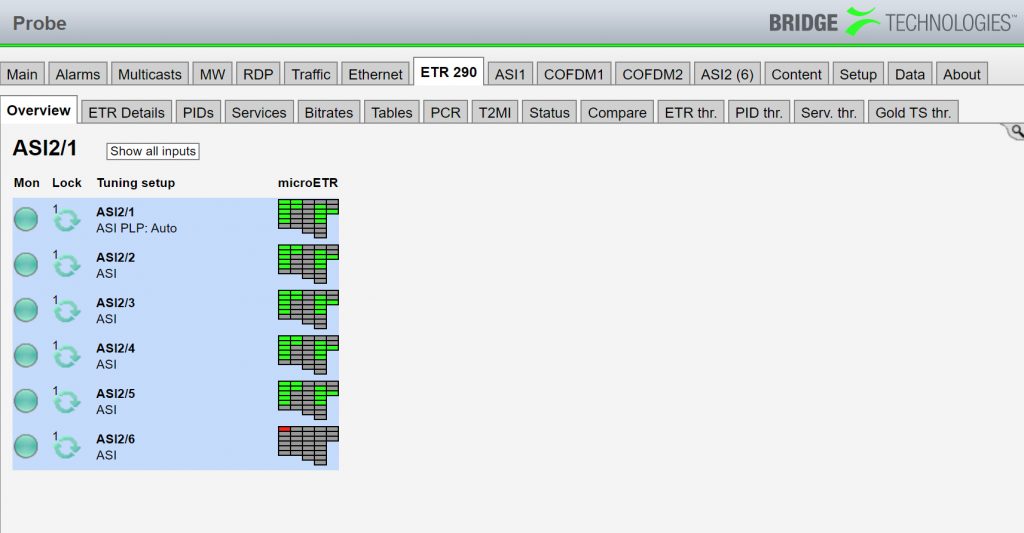

HIGH-DENSITY ASI INPUT MODULE The new VB246 module is designed to provide customers who require higher ASI density, with 6 ASI inputs in parallel. Monitored concurrently and with continuous ETSI TR 101 290 analysis, the VB246 is perfect for existing infrastructures in the head-end and regional edge-multiplexer/modulator/transmitter sites.

Technologies

Bridge Technologies options are designed to enhance the overall ability and performance of accurate monitoring in the broadcast environment

Click below to learn more about compatible technology options:

Download PDF
  • Overview



    Using two VB246 interface modules in a 1RU chassis allows full time monitoring of 13 ASI streams in parallel – 6 streams from each of the interface modules, and one stream from the ASI input of the VB120 or VB220 controllers.

    The monitoring unit is controlled as part of a system via the VBC Controller as a stand-alone unit using a regular web-browser, or even by a third party management system.

    • 6-input ASI module
    • One mode: Constant monitoring of all 6 ASI inputs
    • Higher stream count and higher performance
    • Compatible with 1RU chassis running latest software
  • Tech Features

    VB246 ASI INPUT INTERFACE MODULE

    • 6 x 75 ohm female BNC inputs
    • 6 red/green LED indicators
    • NEW Support for continuous analysis of all 6 x ASI inputs
    • Supports DVB-ASI according to EN 50083-9, Annex B
    • Supports Burst mode, Spread mode and legacy M2S
    • Supports 188-byte packet format and 204-byte packet format
  • Software Options

    No software options necessary

  • Ordering Codes

    VB246- ASI high-density input blade

  • Documentation

    Quick Start Guide – Download
